High Resolution Mode: Ø 60mm

High Resolution Mode (Hi-Res)

At 1/4 the standard pixel size, high-resolution mode produces the
sharpest and clearest images the 3D Accuitomo 170 has to offer.
Even in hi-res mode, 360 scans take only 30.8 seconds, and 180
scans a mere 15.8 seconds. Available for 40 x 40 mm and 60 x 60
mm FOVs, it is ideal for observation of delicate bone structures such as the ossicular chain.

High Fidelity Mode: Ø 60 mm Zoom Reconstruction

High Fidelity Mode (Hi-Fi)

Slow and steady scans at 30.8s for 360 degrees and 15.8s for 180
makes for exceptionally clear images with minimal artifacts. Zoom
reconstructions made from this acquisition are exceptionally clear.

High Speed Mode (Hi-Speed)

Full scan: 10.5s. Half scan: 5.4s. Reduces motion artifacts for patients that may not be able to sit still such as children and for patients concerned with higher X-ray dosage. Available for 40 x 40mm and 60 x 60 mm FOVs.

Standard mode: Ø 60 mm

Simple, accurate positioning

The three positioning laser beams and an LCD make patient
positioning easy. The chinrest stabilizes the patient`s head to avoid movement. Scout images enable even more accurate positioning.

Two-Direction Scout

For even more accurate positioning, scout images can be utilized.
After positioning, two still X-ray images of coronal and sagittal views
can be taken to confirm that the position is accurate. If adjustment is
necessary, positioning can be changed by dragging the cursor on the
monitor and moving it to the center of the region of interest.

Preview Image

3D-CT image: Region of interest is well centered.

Use scout to accurately determine the minimal region of interest before exposing the patient to the higher dosage CT scan.

Easy as One, Two, Three

First, the patient`s initial position is set and recorded using the three
positioning laser beams. Then, the region of interest is aligned in the
LCD. The chair automatically moves into the optimal position. During
the X-ray exposure, the patient is stabilized by the chinrest and the
headrest.

Acquisition to diagnosis made simple

The i-Dixel imaging software offers a wide variety of features to help you quickly and easily create comprehensive treatment plans and explain those plans to your patients.

Freedom from platform and simplicity of design

i-Dixel WEB runs as a web service on an X-ray server PC included with your Morita X-ray system. It serves as a local and secure web-based dental image processing service that you can access throughout your practice on a wide range of devices from workstations to tablets.

No software installation needed

With the latest advancements in web technology, i-Dixel WEB gives youthe freedom to view your images wherever you want and however you want. Gone are the days of complicated chairside PC setups, and limited choices of hardware. Mac OS X and even iPads can be used to view and edit data from a Morita X-ray system.

One Volume Viewer Software

Share your cases with referring doctors or view them on computers without i-Dixel installed using the Morita One Volume Viewer.

CT data can be exported from i-Dixel or even i-Dixel WEB and copied to a DVD or thumbdrive and shared. What you see is what you get and any indication, annotations or even your contrast settings are visible no matter where the data is viewed.

New annotations can be added and contrast adjusted to suite the viewing environment but your indications are always visible and cannot be changed. What you can do with the 3D viewer in i-Dixel, you can do with One Volume Viewer too.

i-Dixel conforms to the following DICOM standards:

Modality worklist management service class (optional)
Storage service class
Modality performed procedure step service class
Print management service class

For more information on i-Dixel, please visit the i-Dixel webpage. To see the latest advancements in web technology and how this can simplify your IT needs, visit our i-Dixel WEB page for details.

Clinical cases

Doctors and Radiologists from all over the world have shared with us stunning cases that highlight the benefits of the 3D Accuitomo's superior image quality in treatment planing and diagnostics.

Don't take our word for it. See what your peers have to say in our growing list of clinical cases.

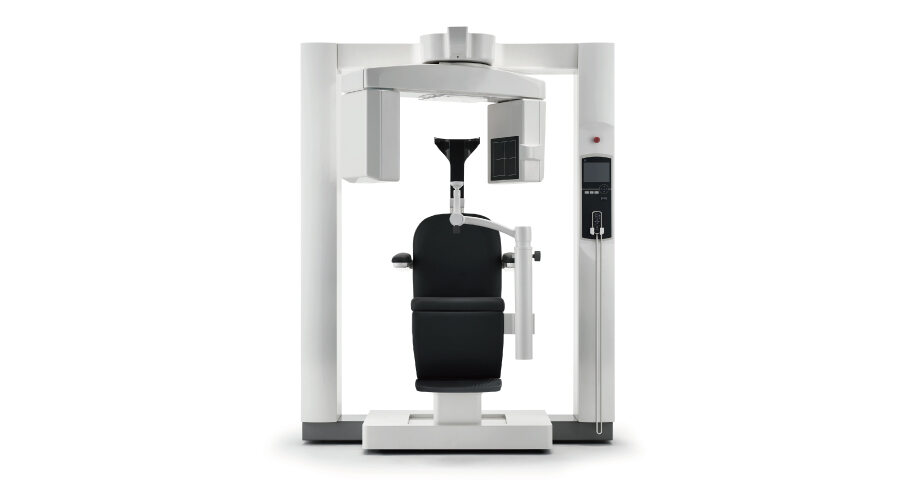

	3D Accuitomo 170
Scan time in seconds	5,9,18,30
Duration of 3D exposure in seconds	5,9,18,30
Imaging in mm (WXH)	40x40, 60x60, 80x80, 100x100, 100x50, 140x50, 140x100, 170x50, 170x120,
Reconstruction time	max. 5 minutes
Voxel size in mm³	0.08/0.125/0.16/0.25
Lp/mm (DVT)	>2 at MTF 10%
Lp/mm (OPG)	N/A
Zoom reconstruction	yes
Single Images DVT	270/530 or 900
X-ray tube assembly	high frequency
KV/mA	60-90 / 1-10
Dosage DVT	approx. 20 µSV (4x4)
Dosage OPG	n.a.
Gray value	14 bit
Image detector	Flat Panel
Implant planning	no software included, Dicom export for other planing programms
DICOM 3.0 compatible	yes
Storage volumina DVT	approx. 40-150 MB (to 1.4 GB rough)
Hardware recommendation	Network 100 Mbit/sec, Client min. Pentium 4, 1.7 GHz, 1 GB Memory
Included with purchase	Capture PC, Server PC, i-Dixel-software, 20" diagnostic monitor, 10x client software, One data Viewer Plus, Dicom Print, Dicom Storage

	3D Accuitomo 170
Scan time in seconds	5,9,18,30
Duration of 3D exposure in seconds	5,9,18,30
Imaging in mm (WXH)	40x40, 60x60, 80x80, 100x100, 100x50, 140x50, 140x100, 170x50, 170x120,
Reconstruction time	max. 5 minutes
Voxel size in mm³	0.08/0.125/0.16/0.25
Lp/mm (DVT)	>2 at MTF 10%
Lp/mm (OPG)	N/A
Zoom reconstruction	yes
Single Images DVT	270/530 or 900
X-ray tube assembly	high frequency
KV/mA	60-90 / 1-10
Dosage DVT	approx. 20 µSV (4x4)
Dosage OPG	n.a.
Gray value	14 bit
Image detector	Flat Panel
Implant planning	no software included, Dicom export for other planing programms
DICOM 3.0 compatible	yes
Storage volumina DVT	approx. 40-150 MB (to 1.4 GB rough)
Hardware recommendation	Network 100 Mbit/sec, Client min. Pentium 4, 1.7 GHz, 1 GB Memory
Included with purchase	Capture PC, Server PC, i-Dixel-software, 20" diagnostic monitor, 10x client software, One data Viewer Plus, Dicom Print, Dicom Storage

Name	3D Accuitomo
Model	MCT-1
Type	EX 1/2 F17
Input Voltage	100/110/120 VAC 220/230/240 VAC
Power Consumption	max. 2.0 kVA

Name	3D Accuitomo
Model	MCT-1
Type	EX 1/2 F17
Input Voltage	100/110/120 VAC 220/230/240 VAC
Power Consumption	max. 2.0 kVA

Tube Voltage	60-90 KV
Tube Current	1 - 10mA (max 8 mA: Hi-Fi, Hi-Res Modes)
Focal Spot Size	0.5 mm
Exposure Time (360°/180°)	Std-Modus: 17.5/9.0 sec. Hi-Fi-Modus: 30.8/15.8 sec. Hi-Res-Modus: 30.8/15.8 sec. Hi-Speed-Modus: 10.5/5.4 sec.
Field of View (Diameter × Height)	Ø 170 x120 mm Ø 170 x 50 mm Ø 140 x100 mm Ø 140 x 50 mm Ø 100 x100 mm Ø 100 x 50 mm Ø 80 x 80 mm Ø 60 x 60 mm Ø 40 x 40 mm
Voxel Size	80 µm, 125 µm, 160 µm, 200 µm, 250 µm
